Belluscura X-PLOR® Portable Oxygen Concentrator


This item ships FREE


Lightweight and compact, the X-PLOR® is ideal for patients who want to replace their heavy oxygen tanks without missing a moment. The X-PLOR is also Bluetooth®-capable and can be connected to your mobile device through our newly developed Nomad Biometrics™ App. With a rechargeable battery, easy-to-use interface, and high oxygen output, supplementary oxygen has never been more approachable or affordable.


The X-PLOR, built by Belluscura® in the U.S.A., is an Airgonomically™ designed unit that delivers more oxygen per pound than other units in its class. It weighs only 3.75 pounds; light enough to easily transport anywhere. Breath-detection technology delivers oxygen when you breathe in, and the unit will notify you if no breath is detected. Lightweight and compact, X-PLOR enables you to live your life in motion by providing innovative oxygen enrichment technology in a small package that’s capable of delivering between 215-750 mL of oxygen per minute. An 8-cell battery provides up to 4.5 hours of battery life, so you can still participate in your favorite activities. The X-PLOR is quiet and discreet with noise output less than 39 dB(A). It even allows you to easily charge the unit on or off the device without additional accessories.
With X-PLOR, you can use your unit freely while charging a backup battery at the same time. User-replaceable cartridges make maintenance hassle-free, with no need to send your device back to your oxygen provider to replace your cartridge.



  • Oxygen output up to 95%
  • User-replaceable cartridge
  • Airgonomically™ Designed to be lightweight and compact for easy travel
  • Long-Lasting, Direct Charge Battery: Up to 4.5 hours of use when fully charged

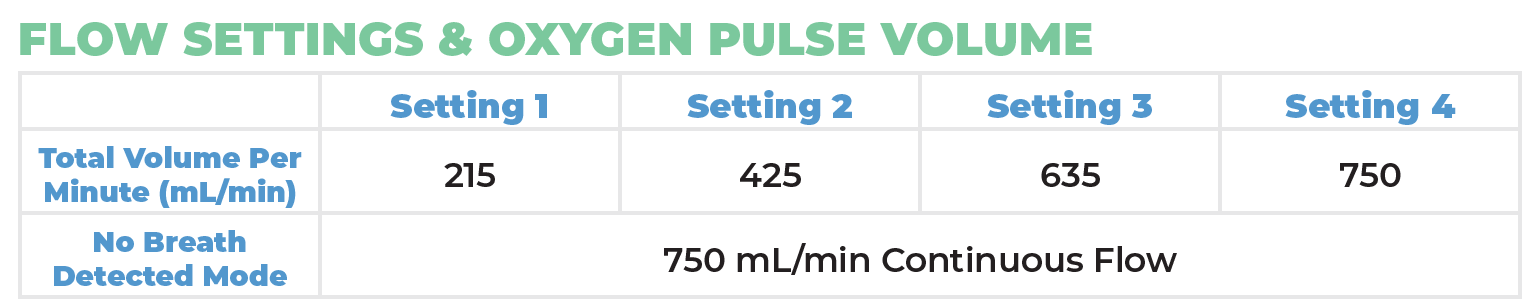

  • Pulse flow settings 1 through 4 delivering 215 to 750 ml/min
  • X-PLORATION™ Mode (Setting 4) delivers extra boost of oxygen when you need it most. It goes into Pulse Dose Mode for 10 minutes before reverting to Setting 3.
  • No Breath Detected (NBD) mode is a battery-saving mode that runs for 3 minutes on 750 ml/min Continuous Flow then shuts unit down if left on while not in use.
  • FAA Compliant
Quick Start Guide
Patient Brochure
Replace Your Cartridge
  • Manufacturer:Belluscura
  • DC Power Options:DC Input: 15 V
  • Dimensions:L/W/H: 7.3 in. (18.5 cm.)/2.9 in. (7.4 cm.)/6.5 in. (16.5 cm.)
  • Dimensions with Battery:L/W/H: 7.3 in. (18.5 cm.)/2.9 in. (7.4 cm.)/7.6 in. (19.3 cm.)
  • Weight:3.750000
  • Weight with Battery:3.75 lbs
  • Weight Without Battery:2.5 lbs
  • Sound Level:<39 dB(A) at Level 2
  • Flow Settings:1-4 Pulse Settings
  • Oxygen Purity:82% to 92% at all flow settings
  • Breath Rate:15-40 breaths per minute
  • Max Outlet Pressure:215-750mL/min
  • AC Input Range:100 to 240 VAC; 50 to 60Hz Auto-Sensing 1.0A
  • DC Output:15 V
  • Battery:8-Cell Battery
  • Battery Duration:Up to 4.5 hours with 8-cell battery
  • Battery Recharge Time:Up to 6 hours for an 8-cell battery
  • Operating Temperature:Temperature: 41 to 95˚F (5 to 35˚C)
  • Operating Humidity:Humidity: 5% to 85%, non-condensing
  • Operating Altitude:0 to 10,000 ft (0 to 3048 meters
  • Operating Environment:700 to 1060 mbar
  • Storage Environment:Temperature: 32 to 140˚F (0 to 60˚C) Humidity: 0% to 95%, non-condensing (Store in a dry environment)
  • Transportation:Keep Dry, handle with care.
  • Flow Range:1-4 Pulse Settings
  • Humidity Range:5% to 85%, non-condensing
  • Included in Box: X-PLOR® Unit

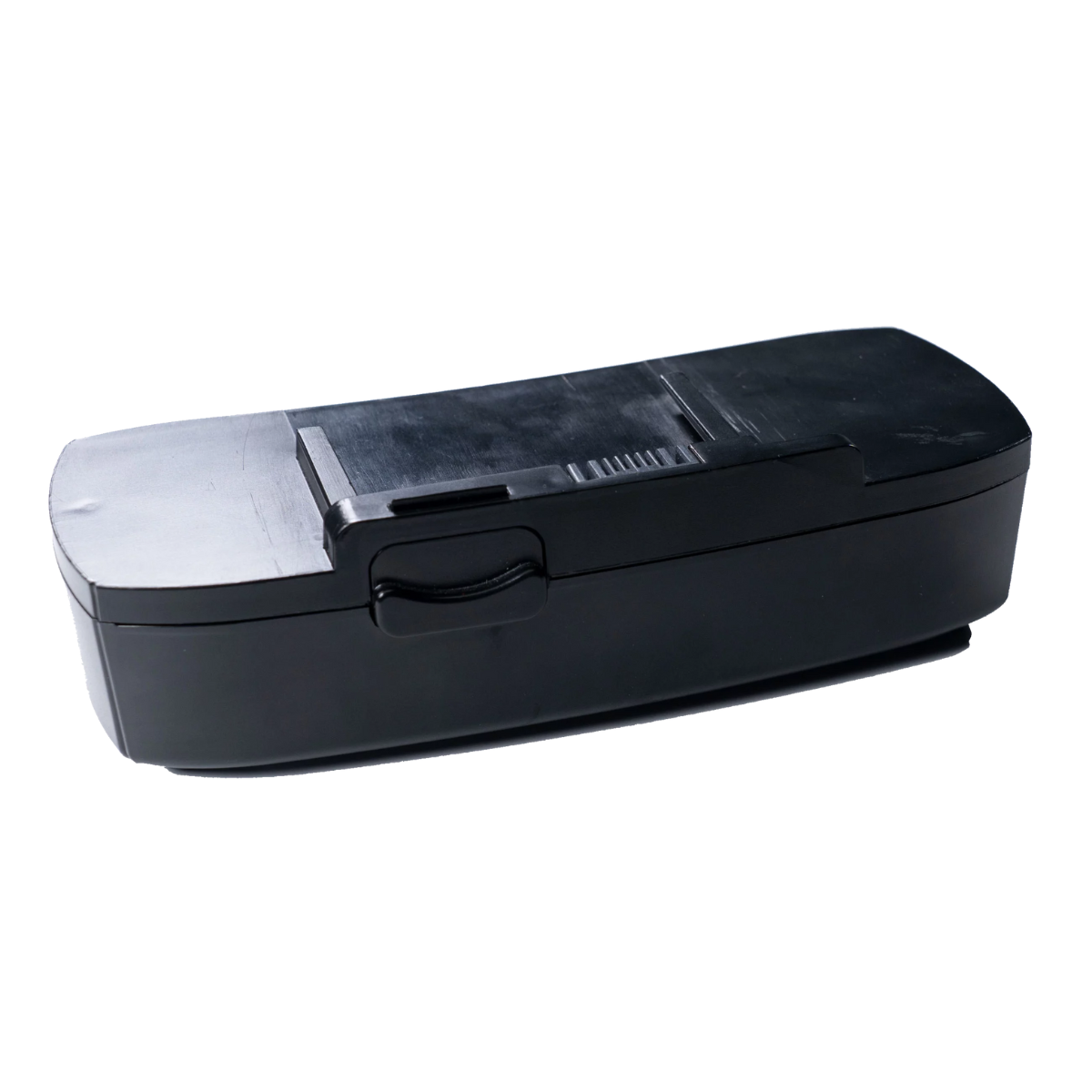

    8-Cell Battery
    User-Replaceable Cartridge <`br/>Air Intake Filter

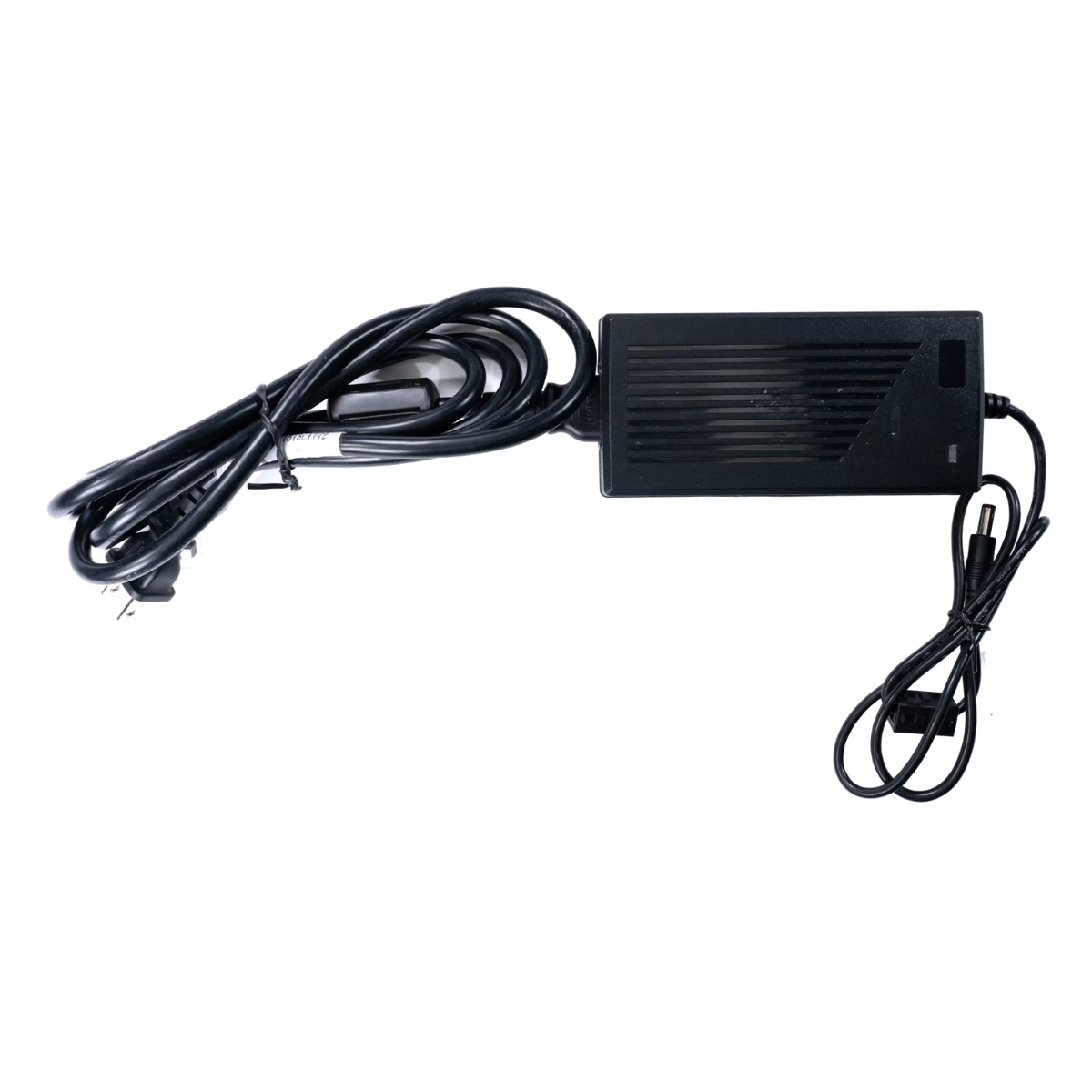

    AC Power Adaptor
    DC Power Adaptor
    1 cannula

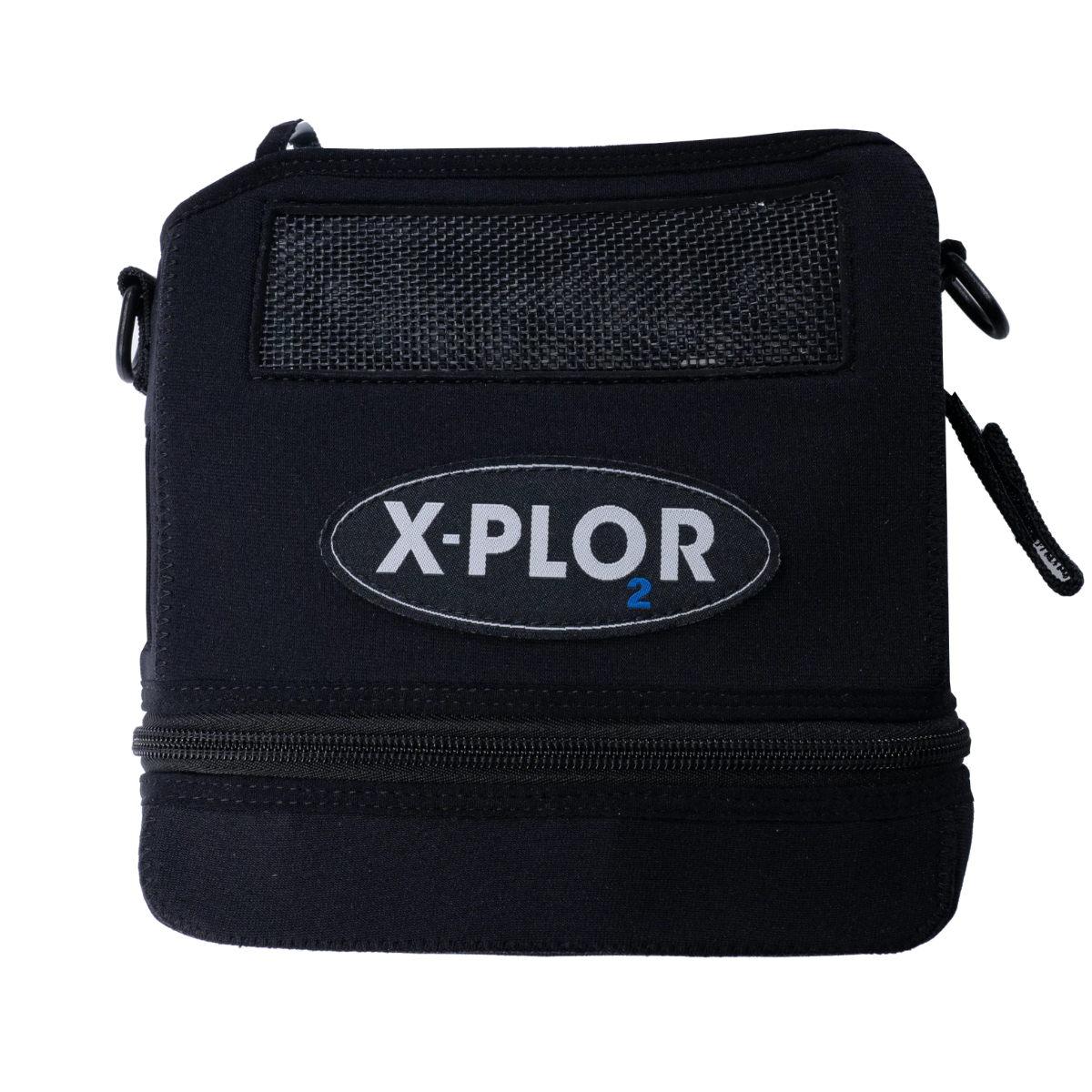

    Carry Bag With Handle & Shoulder Strap
  • Prescription Required:Yes
  • Recharge Time:Up to 6 hours for an 8-cell battery
  • Warranty:Click here to see warranty
