Description

Ultra Modern Design with a User Friendly Interface

Easy access to frequently used features.
Accessory and supply reminders keep your treatment on track.
Clock, Temperature and Humidity Monitor on stand-by for convenience.

Integrated Heated Tubing

With intelligent Auto Humidity control G3 allows maximum moisture while ensuring rain out in the tubing is not an issue.

Pre-Heat Feature

The G3 series has a pre-heat feature to warm your humidifier water up for ultimate comfort.

Excellent Sound & Performance

Multi-stage noise reduction technology is used to ensure sound performance is under 26 dB.

Intended Use

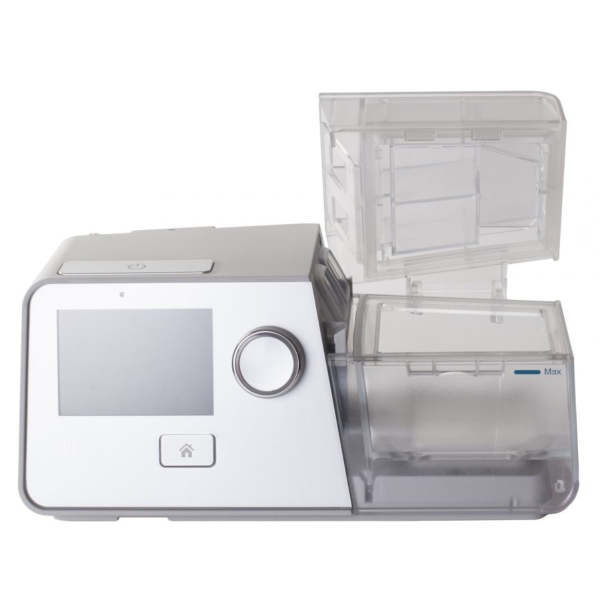

The Luna G3 BPAP 25A is a Bi-level PAP (Bi-level Positive Airway Pressure) device designed for the treatment of adult Obstructive Sleep Apnea (OSA). The integrated humidifier is indicated for the humidification and warming of air from the flow generator device. These devices are intended for single-patient use by prescription in the home or hospital/institutional environment on adult patients. It is to be used on patients >66 lbs./30 kg for whom CPAP therapy has been prescribed. The system can deliver bi-level therapy or auto bi-level therapy.

Contraindications

If you have any of the following conditions, tell your doctor before using this device:

Insufficient respiratory drive to endure brief interruptions in non-invasive ventilation therapy
Acute sinusitis or otitis media
Epistaxis causing a risk of pulmonary aspiration
Conditions predisposing to a risk of aspiration of gastric contents
Impaired ability to clear secretions
Hypotension or significant intravascular volume depletion
Pneumothorax or pneumomediastinum
Recent cranial trauma, cerebrospinal fluid leak or surgery
Obviously uncooperative or extremely tense

The following side effects may occur during treatment:
- Dryness of the mouth, nose and throat
- Abdominal bloating
- Ear or sinus discomfort
- Eye irritation
- Skin irritation due to the use of a mask
- Chest discomfort

Specifications

Device Size
Dimensions (L x W x H): 265 mm × 145 mm × 114 mm
Weight: 1.7 kg
Water capacity: To maximum fill line 360 mL

Product Use, Transport and Storage
Operation Transport

Temperature: 5°C to 35°C (41 ̊F to 95 ̊F)
Humidity: 15% to 93% Non-condensing
Atmospheric Pressure: 760 ～ 1060 hPa

Storage

Temperature: -25°C to 70°C (-13 ̊F to 158 ̊F)
Humidity: 15% to 93% Non-condensing
Atmospheric Pressure: 760 ～ 1060 hPa

Heated Humidifier
Humidifier Settings: off, Auto, 1 to 5 (95 ̊F to 154.4 ̊F / 35°C to 68°C)
Humidifier Output: No less than 15 mg H2O/L
Environmental Conditions: Maximum airflow, 35°C, 15% relative humidity
Maximum Operating Pressure: 40 cmH2O
Pressure Drop with Humidifier: < 0.4 cmH2O at 60 LPM flow
Maximum Delivered Gas Temperature: ≤ 43°C

Mode of Operation
Continuous

Work Mode
CPAP, AutoCPAP, S, AutoS

SD Card
The SD card can record patient data and fault information

AC Power Consumption
100V - 240 V ～, 50Hz / 60 Hz, 2 A

Device offer to Heated Tubing Communications Port
24 V 18 W

Type of Protection Against Electric Shock
Class II Equipment

Degree of Protection Against Electric Shock
Type BF Applied Part

Degree of Protection Against Ingress of Water
IP22

Pressure Range
4 to 25 cmH2O (in 0.5 cmH2O increments)
Under single fault conditions, ≤ 30 cmH2O for CPAP and AutoCPAP mode, ≤ 40 cm for the rest of the modes.

Specifications

Manufacturer:3B Products
Brand:Luna
Dimensions:Dimensions (L x W x H): 265 mm × 145 mm × 114 mm
Product Finder Type:Machines
Product Finder Brand:3B PRODUCTS
Prescription Required:Yes
Data Card:Yes
Ramp:The ramp time ranges from 0 to 60 minutes.
Warranty:two (2) years
Pressure Range:4-25 cm/H2O
Maximum Pressure:4 to 25 cmH2O (in 0.5 cmH2O increments)
Operating Environment:Temperature: 5°C to 35°C (41 ̊F to 95 ̊F)
Operating Altitude:Atmospheric Pressure: 760 ～ 1060 hPa
Operating Range:Humidity: 15% to 93% Non-condensing
Storage Environment:Temperature: -25°C to 70°C (-13 ̊F to 158 ̊F)
Humidity: 15% to 93% Non-condensing
Atmospheric Pressure: 760 ～ 1060 hPa
Sound Level:Sound Pressure Level: < 26 dB, when the device is working at the pressure of 10 cmH2O.
Sound Level:Sound Power Level < 34 dB, when the device is working at the pressure of 10 cmH2O.
Included In Box:Bilevel 25A Device
Heated Tubing
AC/DC Power Cord
2 Reusable Filters
SD Card
Carry Bag
Machine Type:BiPAP/BiLevel
AC Input Range:100V - 240 V ～, 50Hz / 60 Hz, 2 A
Average Power Consumption:100V - 240 V ～, 50Hz / 60 Hz, 2 A
Weight:3.750000
