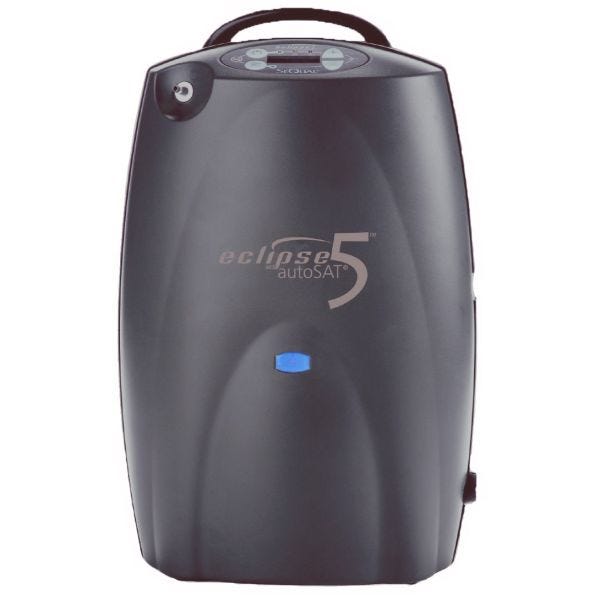

SeQual Eclipse 5 Portable Oxygen Concentrator


This item ships FREE

The CAIRE SeQual Eclipse 5 portable oxygen concentrator is designed to provide reliable oxygen therapy on the go. This concentrator offers over 5 hours of battery life at pulse dose setting of 2, and 2 hours of battery life 2 LPM continuous flow for uninterrupted oxygen delivery anywhere.

FAA-Approved Operation

This FAA-approved oxygen concentrator makes it easy to get where you need to go with adjustable and portable features like a removable cart with a telescoping handle.

Flexible Transport

The Eclipse 5 stands just under 2 feet tall, weighs 18.4 lbs. (with the battery and cart installed), and can be powered by DC or AC power sources, with in-vehicle charging available.

Advanced Clinical Features

The Eclipse 5 supports a wide range of oxygen requirements and pulse dose settings, from continuous flow up to 3 LPM to pulse dose settings 1–9. With its clinical characteristics and high pulse settings, the Eclipse 5 autoSat can support nearly all oxygen users, regardless of oxygen prescription and disease status.

User Manual
Eclipse 5 Cutsheet
Eclipse 5 Quick Start Guide
  • Manufacturer:CAIRE
  • Brand:SeQual
  • Dimensions:19.3” H x 12.3” W x 7.1” D
  • Weight:18.400000
  • Weight with Battery:18.4 lbs
  • Weight Without Battery:15 lb
  • Sound Level:48 dBA at 3.0 LPM Continuous Flow Mode; 40 dBA at 3.0 Pulse Dose Setting; 59 dBA while alarming
  • Flow Type:0.5 – 3.0 LPM (0.5 liter increments) 1.0-6.0 = 16-96 mL (8 mL increments) 7.0-9.0 = 128-192 mL (32 mL increments)
  • Pulse Mode Setting:9 settings up to 192 mL bolus
  • Continuous Flow Settings:6 settings up to 3 LPM
  • Oxygen Purity:90% +5.5/-3%
  • Max Outlet Pressure:14.0 psig
  • AC Input Range: (100-240 VAC, 50-60 Hz; DC Power (12V nominal);
  • DC Output:12 VDC minimum (all settings available in AC and DC power supply)
  • Alarm Type:Loss of power, Low Battery, Low Therapeutic O2 Output, O2 flow outside normal limits. No Inspi- ration detected in Pulse Dose Mode, Unit Malfunction
  • Battery:Battery (Quantity (2) 95 W-Hr battery packs each containing 7.92 gm of lithium content)
  • Battery Duration:2 hours (at 2LPM continuous flow)
    5.2 hours (at a pulse dose setting of 2 setting)
  • Battery Weight:3.4 lbs
  • Battery Recharge Time:1.8 to 5.0 hrs recharge time to achieve 80% capacity (dependent upon the flow)
  • Operating Temperature:50º F to 104º F (10º C to 40º C
  • Operating Humidity:10% - 95% at an 82.4° F (28° C) dew point
  • Operating Altitude:N/A
  • Operating Environment:Must be smoke, pollutant, and fume free.
  • Storage Environment:
    -4º F to 140º F (-20º C to 60º C)
    Humidity: Up to 95% Non-Con- densing
  • Included in Box:
    Portable oxygen concentrator

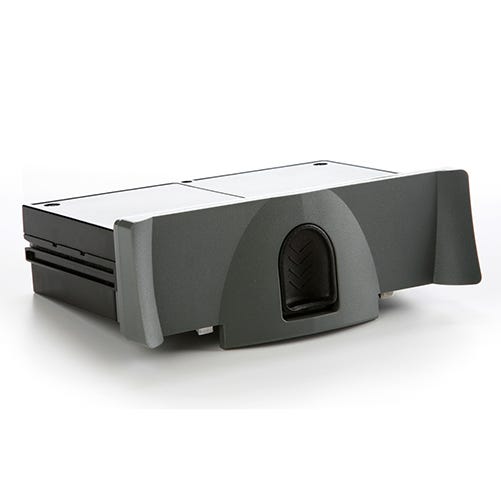

    Power cartridge (battery)

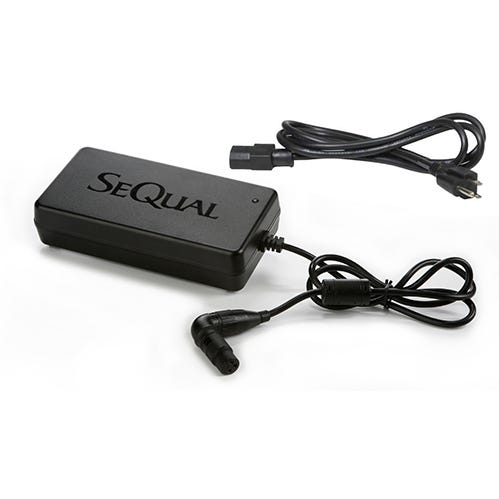

    AC power supply

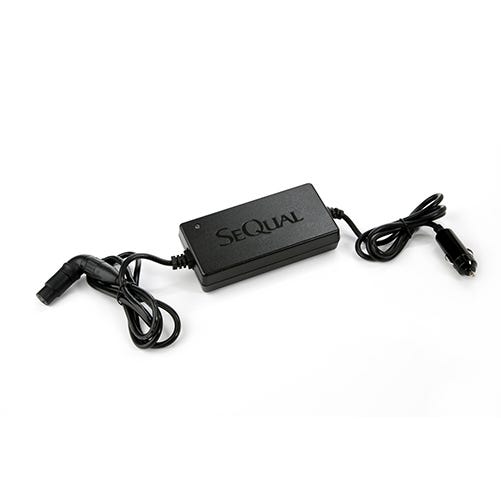

    DC power supply

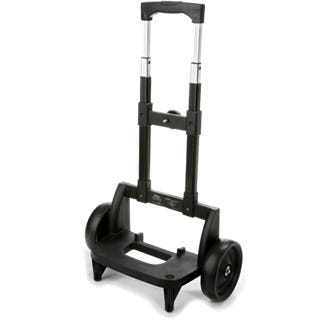

    Removable cart

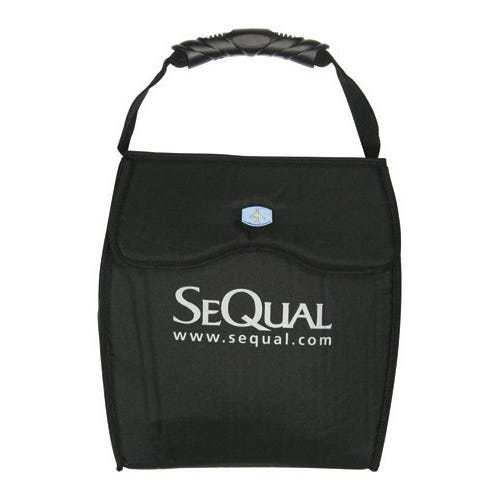

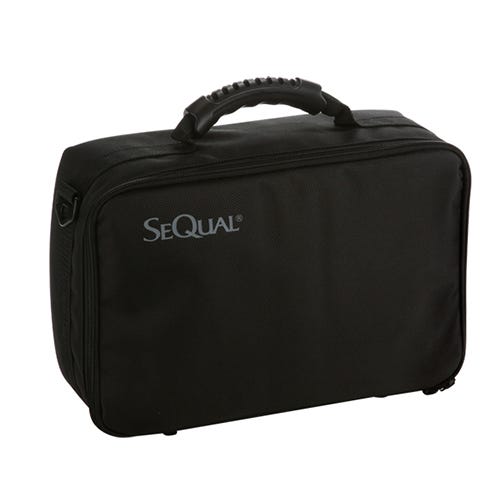

    Accessory bag

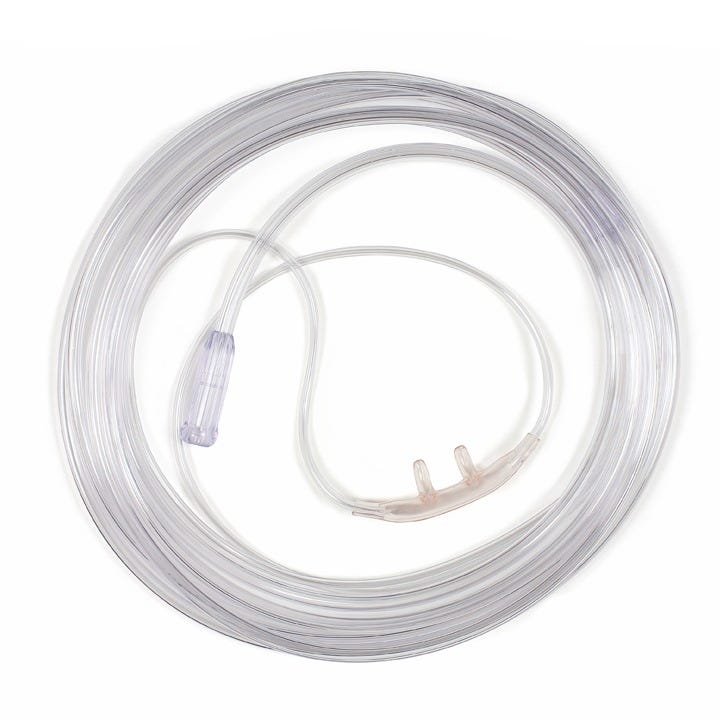

    Nasal cannula
    Spare intake filter
  • Inspiratory trigger sensitivity:-0.135-0.37 cm/H2O (adjustable)
  • Liter Flow:Up to 9
  • Prescription Required:Yes
  • Warranty:
    3 year concentrator
    1 year battery, power supplies, standard accessories
