Resmed AirFit™ F30 Full Face CPAP Mask Frame with Cushion

Resmed AirFit™ F30 Full Face CPAP Mask Frame with Cushion

ResMed AirFit F30i Full Face CPAP Mask

ResMed AirFit F30i Full Face CPAP Mask

ResMed AirFit F30i Full Face CPAP Mask Assembly Kit - WITHOUT HEADGEAR


This item ships FREE


Meet ResMed AirFit™ F30i, the full face CPAP mask that gives you both the freedom you want and performance you can depend on. It’s designed to keep air tubing out of the way so you can sleep in different positions while still getting a reliable seal. In a recent study, full face mask users found that AirFit F30i is significantly better than DreamWear full face. They also found it provides them with a more reliable seal, is easier to use, and is more comfortable to wear and breathe in than DreamWear full face. No wonder it’s the most preferred mask of its kind.

Not only does the innovative design of AirFit F30i let you sleep in different positions, but it’s also proven to provide a reliable mask seal that endures throughout the night. And because it sits low on your face, you can do things like read comfortably in bed with your glasses on.

The UltraCompact CPAP mask cushion rests under the nose, which helps prevent next-day red marks, soreness and irritation. With a cushion design that avoids the top of your nose, you can wake up looking and feeling better.

Product highlights

  • Top-of-head connection keeps air tubing out of the way for more freedom

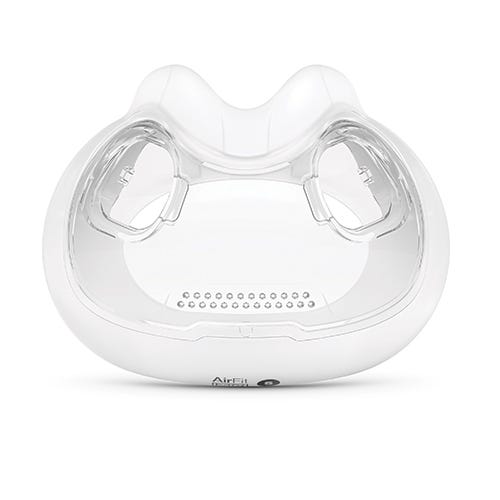

  • UltraCompact cushion rests under the nose to help prevent irritation and red marks
  • Preferred by both CPAP users and sleep professionals to DreamWear full face
  • Magnetic clips mean two simple snaps and your mask is on or off
  • Quick-release elbow allows you to get up at night and disconnect without removing the mask

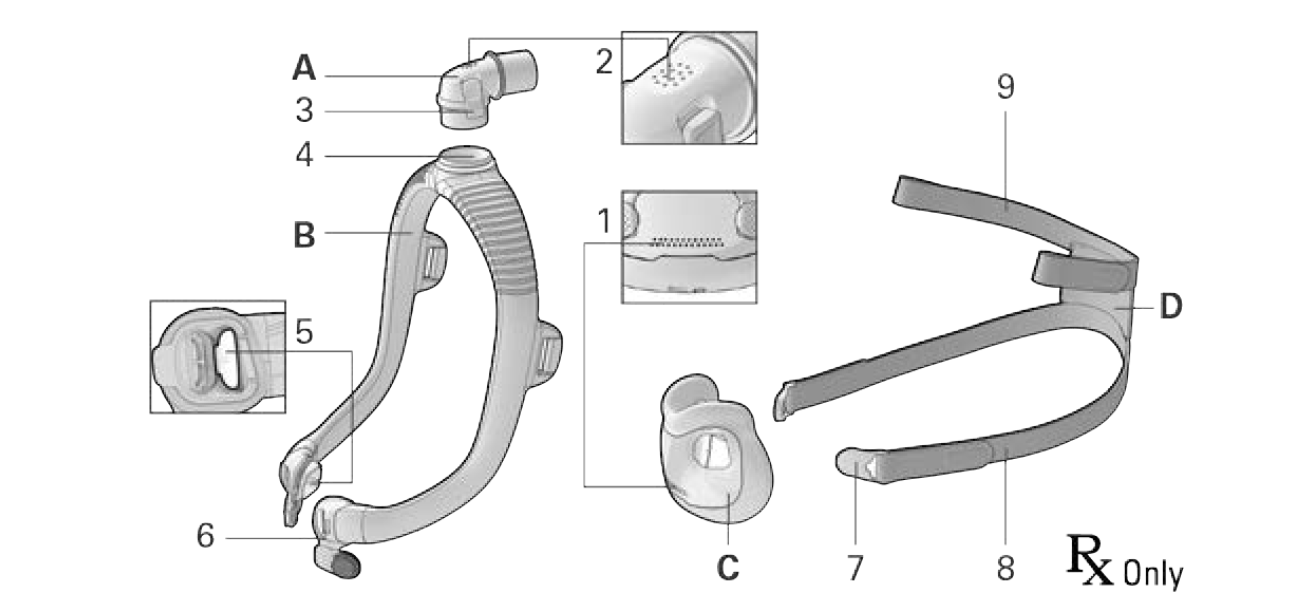

A Elbow

B Frame

C Cushion

D Headgear

1 Vent holes (cushion)

2 Vent holes (elbow)

3 Side button

4 Elbow ring

5 Anti-Asphyxia valve (inside the left and right of frame connector)

6 Frame connector

7 Magnetic clip

8 Lower headgear strap

9 Upper headgear strap

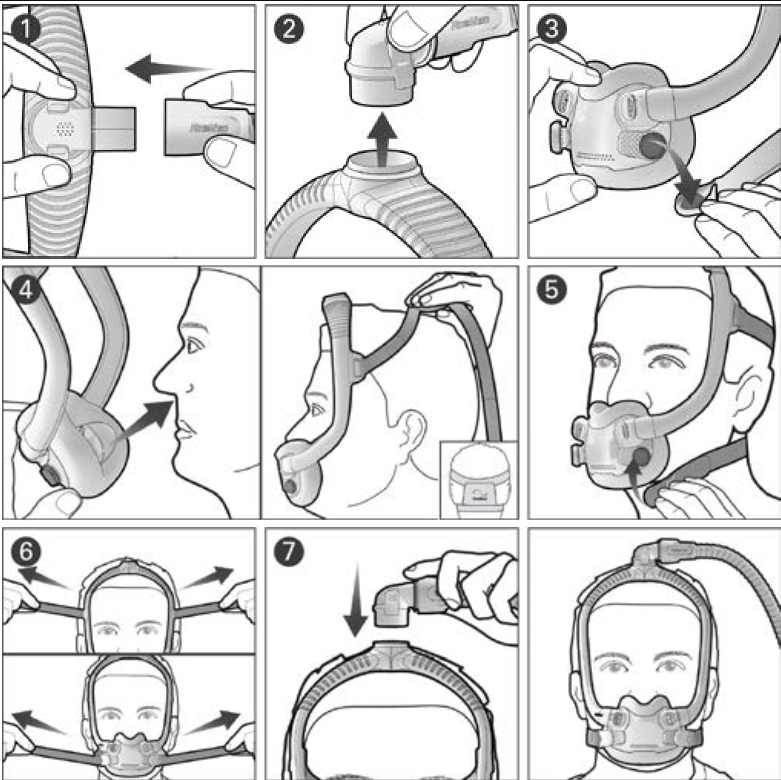

Fitting Your CPAP Mask

  1. Connect the air tubing from your CPAP device to the elbow.
  2. Squeeze the side buttons on the elbow and pull from the frame. Put the elbow and air tubing aside for now.
  3. Twist and pull both magnetic clips away from the frame connectors.
  4. Place the CPAP cushion under your nose and ensure it sits comfortably against your face. With the ResMed logo on the headgear facing up, pull the headgear and frame over your head.
  5. Bring the lower headgear straps under your ears and attach the magnetic clips to the frame connectors.
  6. Undo the fastening tabs on the upper headgear straps and pull evenly. Repeat with the lower headgear straps.
  7. Attach the elbow to the top of the frame. Your mask should now be positioned as shown.

Adjusting your CPAP mask

  • With the CPAP device turned on and blowing air, adjust the position of the cushion for the most comfortable seal under your nose. Ensure that the cushion is not creased and the headgear is not twisted.
  • To fix any mask leaks, adjust the upper or lower headgear straps. Adjust only enough for a comfortable seal and do not overtighten.

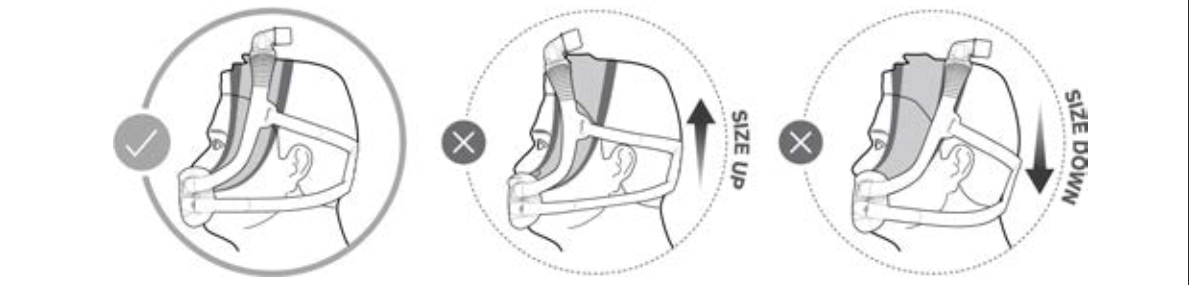

Sizing the CPAP mask

Use the fitting template to assist in selecting the right size cushion. If the mask frame falls back over your head or sits too close to your ears, try a smaller frame size. If the mask falls forward on your head or sits too close to your eyes, try a bigger frame size.

Limited warranty

ResMed Pty Ltd (hereafter ’ResMed’) warrants that your ResMed mask system (including mask frame, cushion, headgear and tubing) shall be free from defects in material and workmanship from the date of purchase for the period of 90 days or in the case of disposable masks the maximum use period. This warranty is only available to the initial consumer. It is not transferable. If the product fails under conditions of normal use,ResMed will repair or replace, at its option, the defective product or any of its components. This limited warranty does not cover: a) any damage caused as a result of improper use, abuse, modification or alteration of the product; b) repairs carried out by any service organization that has not been expressly authorized by ResMed to perform such repairs; and c) any damage or contamination due to cigarette, pipe, cigar or other smoke. Warranty is void on product sold, or resold, outside the region of original purchase. Warranty claims on defective product must be made by the initial consumer at the point of purchase.

This warranty replaces all other expressed or implied warranties, including any implied warranty of merchantability or fitness for a particular purpose. Some regions or states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

ResMed shall not be responsible for any incidental or consequential damages claimed to have resulted from the sale, installation or use of any ResMed product. Some regions or states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from region to region. For further information on your warranty rights, contact your local ResMed dealer or ResMed office.

AirFit F30i user guide
AirFit F30i size guide
AirFit F30i product guide
  • Manufacturer:ResMed
  • Brand:Resmed
  • Product Finder Type:Masks
  • Product Finder Brand:RESMED
  • HCPCS Reimbursement Code:A7030
  • Included In Box:Frame, Cushion
  • Brand/Manufacturer:ResMed
  • Prescription Required:Yes
  • Cushion Type:Silicone
  • Multiple Sizes Included:No
  • adwords_grouping:Full Face Mask
  • Specific Needs:Mouth Breather
  • Available Sizes:
    Standard Frame - Small, Medium, Wide
    Small Frame - Small
    Large Frame – Medium
  • Special Features:Replaceable Cushion
  • Mouth Breather:Yes
  • Mask Type:Full Face
  • Warranty:Limited warranty
