ResMed AirFit™ P30i CPAP Nasal Pillows Starter Pack


This item ships FREE

Sleep in any position you want with the most preferred mask of its kind – ResMed AirFit™ P30i nasal pillows mask – designed to keep tubing out of your way. Achieve true freedom with CPAP therapy and get closer to your bed partner with a mask that’s 80% quieter than the market-leading gel pillows mask, thanks to ResMed QuietAir™ vent technology.

You can easily disconnect from therapy if you have to get up at night using the quick-release elbow, a feature that ensures parts don’t get stuck or lost. Plus, with the AirFit™ P30i SpringFit frame, you get an all-around stable, personalized fit.

63850 - Standard Frame- Standard Frame, Headgear, Pillow Cushions: S,M & L
63851 - Small Frame- Small Frame, Headgear, Pillow Cushions: S & M

Intended use

The AirFit P30i CPAP masks is intended to be used by patients weighing more than 66 lb (30 kg) who have been prescribed non- invasive positive airway pressure (PAP) therapy such as CPAP or bi-level therapy. The masks are intended for single patient re-use in the home and multi-patient re-use in the hospital/institutional environment.

Please read the entire guide before use.

Before using your mask

Remove all packaging and inspect each mask component for visible deterioration.

Use the fitting template to assist in selecting the right size cushion and frame.

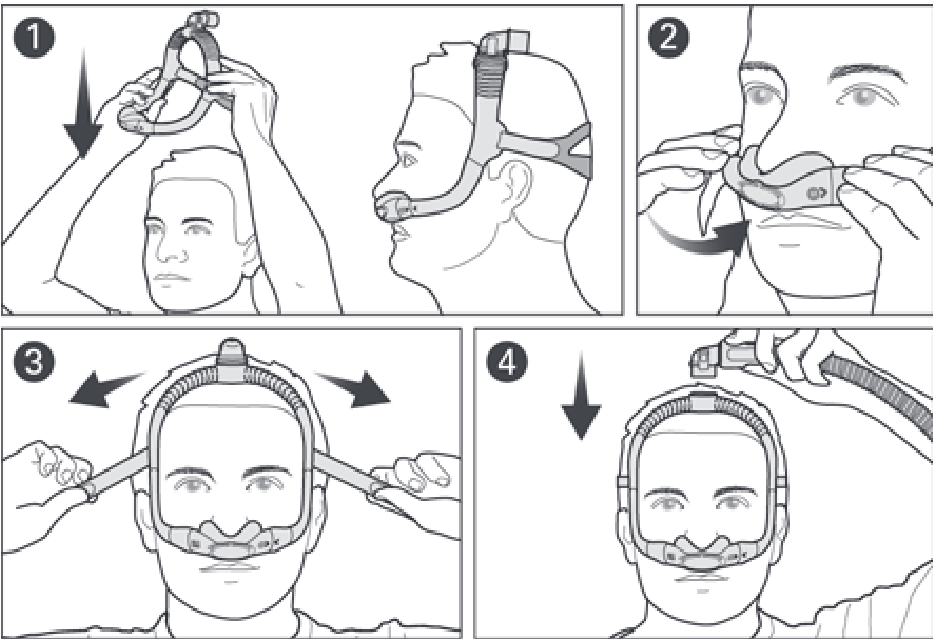

Fitting your  CPAP mask

  1. Pull the frame and headgear over your head until the elbow is positioned on top and the headgear is behind your head.
  2. Place the cushion under your nose; align the pillows into your nostrils.
  3. Tighten or loosen the headgear until the cushion fits comfortably under your nose.
  4. Squeeze the side buttons on the elbow and detach from the frame. Connect the air tubing from your device to the elbow, then reattach to the frame.

Adjusting your CPAP mask

  • When using the mask, air will flow out of the vents in the cushion and elbow. If air leaks from the side or top of the cushion, adjust the mask fitting to improve the seal.
  • You can position the top of the frame forward or backwards over your head until the mask feels comfortable.

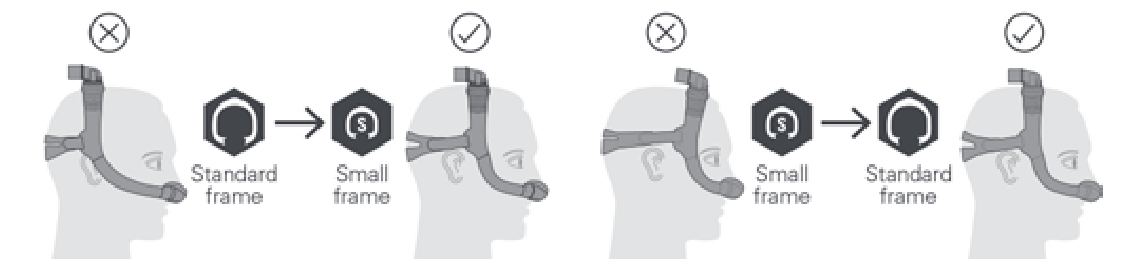

Sizing the CPAP mask frame

If the mask frame falls back over your head or sits too close to your ears, try a small frame size. If the mask falls forward on your head or sits too close to your eyes, try a standard frame size.

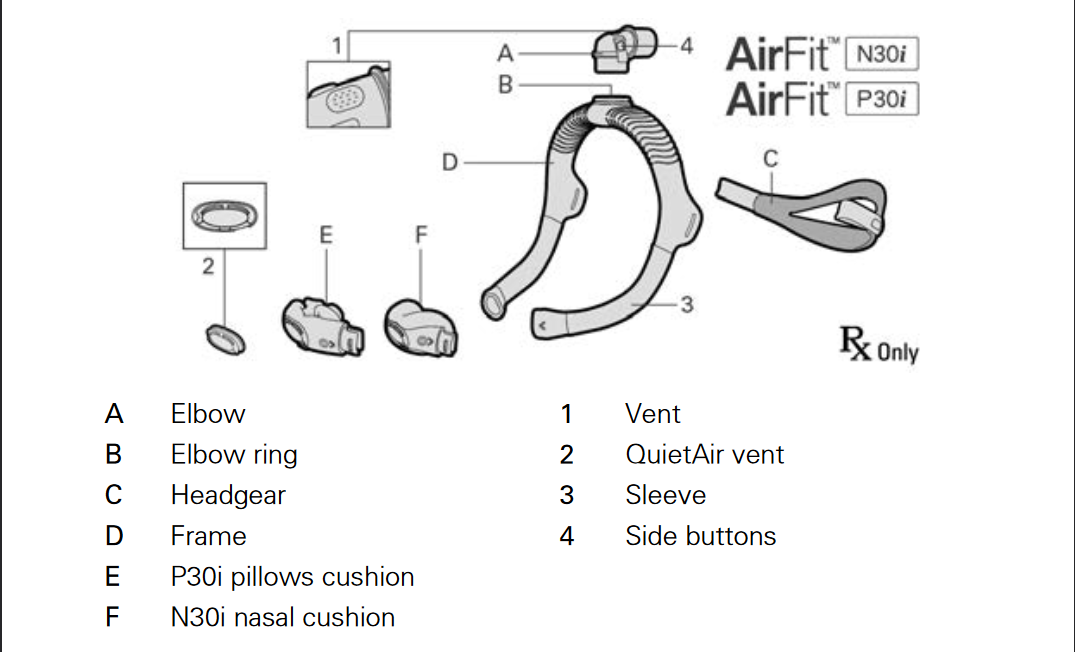

Disassembling your mask for cleaning

If your mask is connected to a device, disconnect the device air tubing from the mask elbow.

1.Pull the cushion from the frame.

  1. Undo the fastening tabs on the headgear strap and pull it from the frame.
  2. Squeeze the side buttons on the elbow and detach from the frame.

Note: The QuietAir vent can be removed to allow inspection of the vent holes.

Cleaning your mask

After each use: Cushion

Weekly: Headgear, frame and elbow

  1. Soak the components in warm water with a mild liquid detergent. Ensure that there are no air bubbles while soaking.
  2. Hand wash the components with a soft bristle brush. Pay particular attention to the vent holes.
  3. Thoroughly rinse the components under running water.
  4. For the frame sleeves, squeeze with a clean towel to remove excess water. Shake the QuietAir vent to remove any excess water. Leave the components to air dry out of direct sunlight.

If the mask components are not visibly clean, repeat the cleaning steps.

User Guide
  • Manufacturer:ResMed
  • Brand:Resmed
  • Product Finder Type:Masks
  • Product Finder Brand:RESMED
  • HCPCS Reimbursement Code:A7034
  • Included In Box:CPAP Mask, mask frame, cushion, headgear and tubing
  • Prescription Required:Yes
  • Cushion Type:Silicone/Gel
  • Multiple Sizes Included:Yes
  • adwords_grouping:CPAP
  • Mouth Breather:No
  • Mask Type:Nasal Pillow
